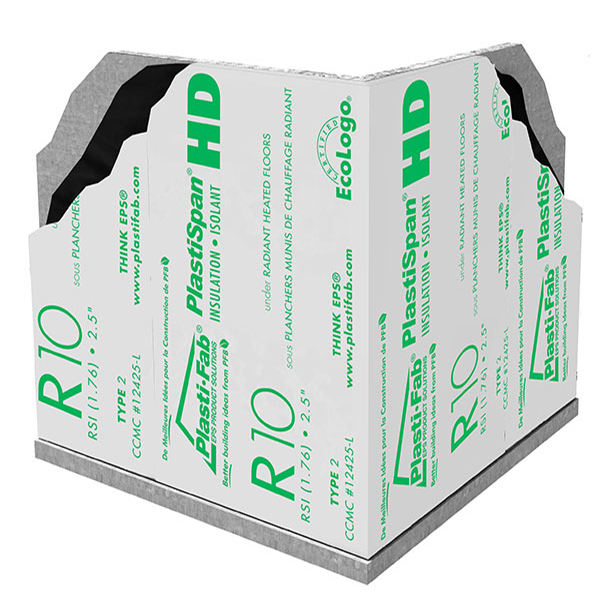

PlastiSpan® HD
PlastiSpan Insulation HD is a moulded expanded polystyrene (EPS) insulation. EPS is a closed cell, rigid foam plastic insulation.
PlastiSpan insulation applied as continuous insulation over foundations, walls and roofs eliminates thermal bridging, increasing your total effective R-value. This reduces energy costs and increases your energy savings.
PlastiSpan expanded polystyrene (EPS) insulation conforms to ASTM C578, Standard Specification for Rigid, Cellular Polystyrene Thermal Insulation, as detailed below.
PlastiSpan insulation has also been evaluated for conformance with the requirements of ICC-ES AC12, Acceptance Criteria for Foam Plastic Insulation per ICC-ES Evaluation Report ESR-1587 and Intertek Code Compliance Research Report CCRR-1072 (see Code Support section in Technical Library for additional information).
- Available in 2x8 ft, 4x8 ft; 2 ft high bundles
- 1, 1 ½, 2, 2 ½, 3 in. Thicknesses with Special order sizes available upon request
- Meets all building codes for above & below grade
- Most cost-effective insulation per R-value
- Meets ASTM C578, Type II
- Thermal resistance - R-value 4.2/inch @ 75 F, 4.6/inch @ 40 F
- Closed cell insulation resists moisture
- Compressive Resistance: 15 psi
- Easy to cut and install
- Maintains R-value
- Increases energy efficiency for reduced heating and cooling costs
- Can be used in Retrofit & new construction
Material Properties of PlastiSpan® HD
| Insulation Properties | Units | ASTM Test | Type II | |
|---|---|---|---|---|
| Nominal Density | pcf | C303 | 1.50 | |
|
Compressive Resistance Minimum @ 10% deformation |
psi | D1621 | 15.0 | |
|
R-value per inch thickness at mean temperature |
40 °F | (ft2•hr•°F/Btu) | C518 | 4.6 |
| 75 °F | 4.2 | |||
|
Water Vapour Permeance Maximum |
Perm | E96 | 3.5 | |
|
Flexural Strength Minimum |
psi | C203 | 35 | |
|
Dimensional Stability Maximum |
% linear change | D2126 | 2.0 | |
|
Water Absorption Maximum |
% by volume | C272 | 3.0 | |
|
Oxygen Index Minimum |
volume % | D2863 | 24 | |
|
Density Minimum |
pcf | C303 | 1.35 | |
|
Flame Spread Index Maximum |
E84 | <25 | ||
|
Smoke-Developed Index Maximum |
<450 | |||
| Thermal Resistance for Some Common Thicknesses | |||
|---|---|---|---|
| Millimeters | RSI | Inches | R-Value |
| 19 | 0.53 | 3/4" | 3.03 |
| 25 | 0.70 | 1" | 4.04 |
| 38 | 1.05 | 1 1/2" | 6.06 |
| 50 | 1.40 | 2" | 8.08 |
| 75 | 2.10 | 3" | 12.12 |
|
Other Standard & Custom thicknesses available upon request. Standard sizes range from; 2x4,2x8,4x4,4x8. |
|||
