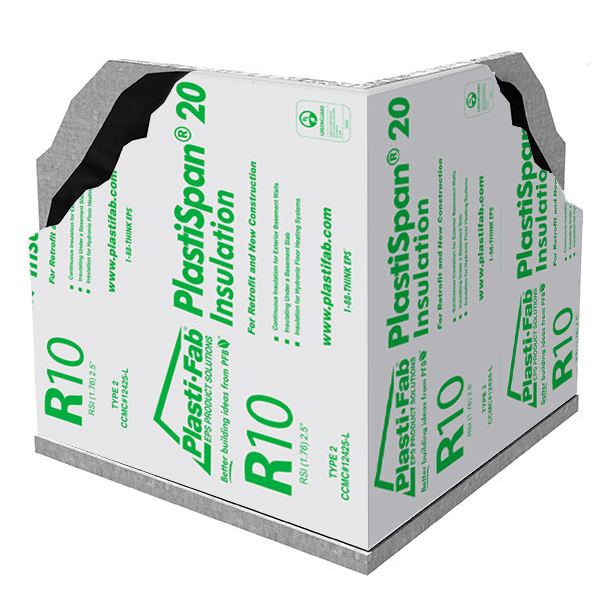

PlastiSpan 20 insulation is a moulded expanded polystyrene (EPS) insulation. EPS is a closed cell, rigid foam plastic insulation.

PlastiSpan insulation applied as continuous insulation over foundations, walls and roofs eliminates thermal bridging, increasing your total effective R-value. This reduces energy costs and increases your energy savings.

PlastiSpan expanded polystyrene (EPS) insulation conforms to ASTM C578, Standard Specification for Rigid, Cellular Polystyrene Thermal Insulation, as detailed below.

PlastiSpan insulation has also been evaluated for conformance with the requirements of ICC-ES AC12, Acceptance Criteria for Foam Plastic Insulation per ICC-ES Evaluation Report ESR-1587 and Intertek Code Compliance Research Report CCRR-1072 (see Code Support section in Technical Library for additional information).

Available in 2x8 ft, 4x8 ft; 2 ft high bundles
1, 1 ½, 2, 2 ½, 3 in. plus special order sizes and thicknesses to meet job sizes

Meets all building code requirements
Most cost-effective insulation per R-value
Meets ASTM C578, Type II
Thermal resistance - R-value 4.2/inch @ 75 F, 4.6/inch @ 40 F
Closed cell insulation resists moisture
Easy to cut and install
Maintains R-value
20 psi compressive resistance
Increases energy efficiency for reduced heating and cooling costs
Can be used in Retrofit & new construction

Material Properties of PlastiSpan^® 20 Insulation

Insulation Properties		Units	ASTM Test	Type II
Nominal Density		pcf	C303	1.50
Compressive Resistance Minimum @ 10% deformation		psi	D1621	15.0
R-value per inch thickness at mean temperature	40 °F	(ft²•hr•°F/Btu)	C518	4.6
R-value per inch thickness at mean temperature	75 °F	(ft²•hr•°F/Btu)	C518	4.2
Water Vapour Permeance Maximum		Perm	E96	3.5
Flexural Strength Minimum		psi	C203	35
Dimensional Stability Maximum		% linear change	D2126	2.0
Water Absorption Maximum		% by volume	C272	3.0
Oxygen Index Minimum		volume %	D2863	24
Density Minimum		pcf	C303	1.35
Flame Spread Index Maximum			E84	<25
Smoke-Developed Index Maximum			E84	<450
